3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device

Name: 3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device
Brand: BRITEC
Price: 1 USD

China 3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device wholesale

Brand Name : BRITEC

Model Number : BR-60 275 3p

Place of Origin : China

MOQ : 100 Piece/Pieces

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 50000 Piece/Pieces Month

Delivery Time : Shipped in 15 days after payment

Packaging Details : EXPORT PACKING

Item Name : Surge protector

Material : Thermal Plastic

Pole number : 3P

Protection : IP20

Tu : -40℃-80℃

Uc : 275V

In : 30kA

Imax : 60kA

Up : ≤1.5kV

Usage : Low Voltage

Contact Now

3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device

3 Pole SPD 275V Power Surge Protector Features:

• Protection class: Type 2, Class II.

• Pole number: 3P.

• Comply with IEC standards.

• Green window will change when fault.

• High performance varistor with thermal disconnection tripping device.

• Plug-in module/base designs facilitate replacement of a failed module without the need to remove system wiring etc.

• Designed to protect 3 phase TN-C systems.

3 Pole SPD 275V Power Surge Protector Technology characteristic:

	BR-60 275 3P
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	30kA
Max. discharge current (8/20us) Imax	60kA
Voltage protection level Up	≤1.5kV
Response time tA	≤25ns
Max. backup fuse	200A
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Dimension	3mods
Test standards	IEC 61643-1

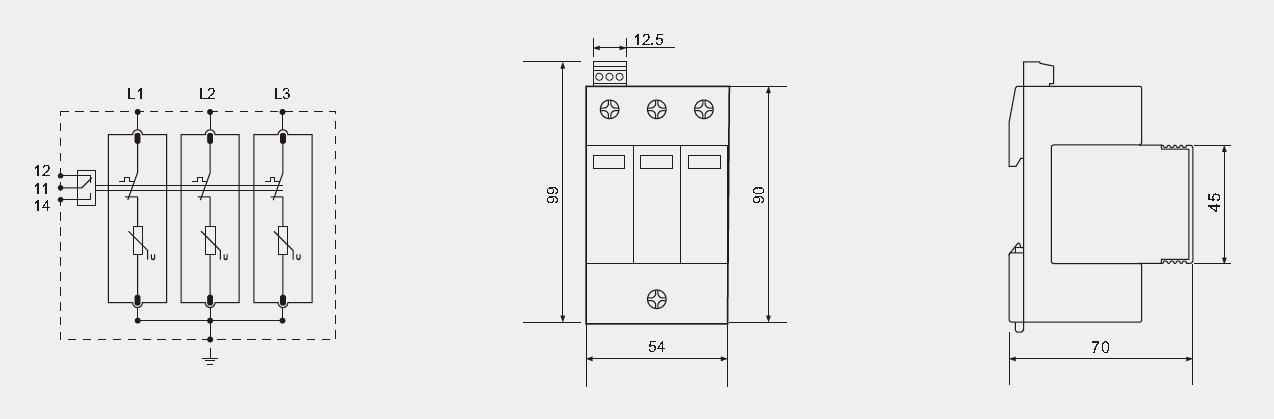

Dimension:

3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device

3 Pole SPD 275V Power Surge Protector Application:

• Protecting low-voltage consumers' installations against indirect lightning discharges.

• Used to guard sensitive equipment from voltage spike.

Our Services:

• Sample is available for your evalution. The delivery time for sample is 7 days.
• Offer detailed technique datasheet and installation diagram.
• 2 year quality warranty, perfect after-sell service.

About us:

Quality is for the sake of our first consideration, we have plenty of various SPD, and our workers work in our factory over 17 years, we are professional in manufacturing various surge protection devices, including the power and signal type.

3 Pole SPD 275V Power Surge Protector 60kA T2 MOV Surge Protective Device

Our certification:

FAQ:

Q1: Are you trading company or manufacturer?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is within 5 days if the goods are in stock, or it is less than 30 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples?

A: Yes, we could offer the sample.

Q4: What is your terms of payment?

A: 30% T/T in advance, balance before shippment.
